JOB CARD
FEIVORFAB — ATLANTA, GA
FF-01
DELIVERED: 2025

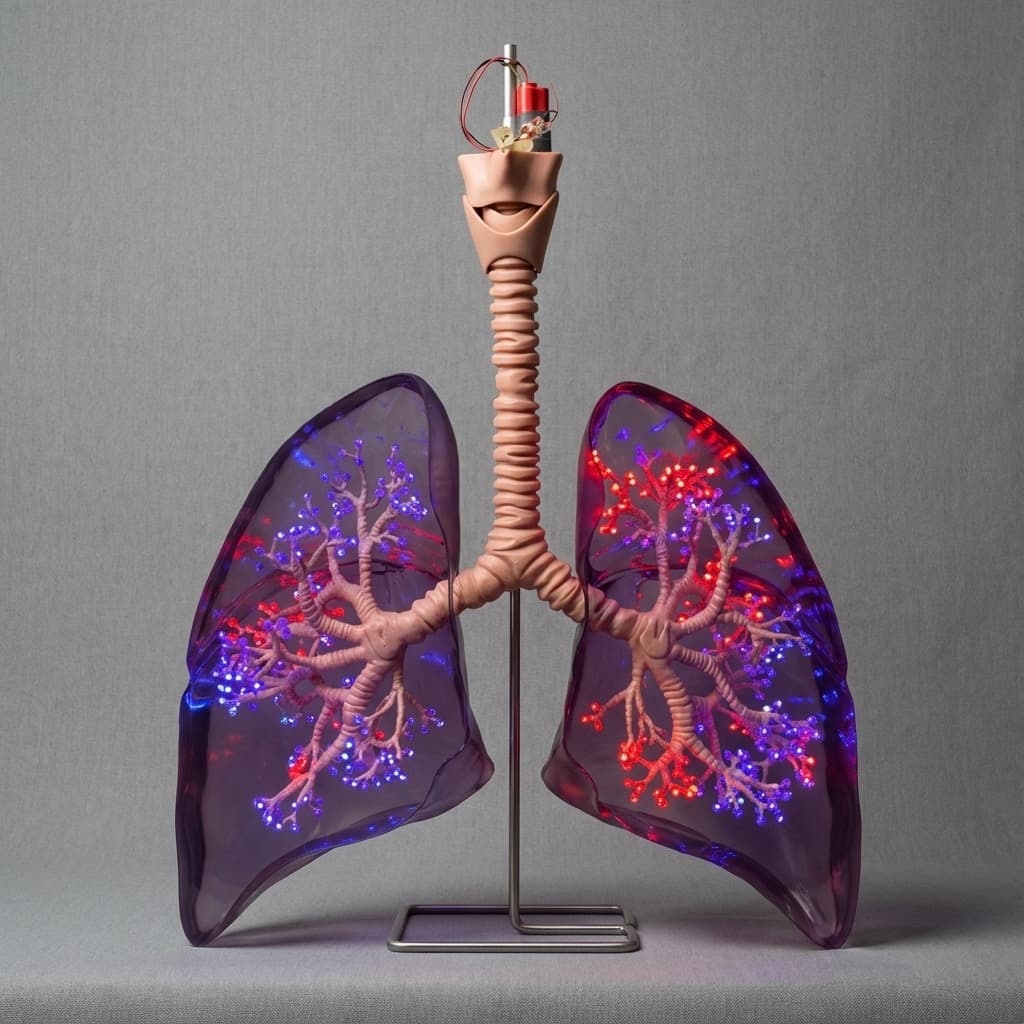

Illuminated Anatomical Lung Model
CLIENT: Healthcare Client
STATUS: COMPLETED|CATEGORY: TRADE SHOW|DELIVERED
Section A: Project Brief
Anatomical lung model with 500+ individually addressable LEDs embedded in a flexible TPU bronchial tree, vacuum formed PETG shells.
Key Challenge
Material pivot from brittle resin to flexible TPU while maintaining optical clarity
Section B: Technical Specifications
Material
TPU (flexible 3D print), PETG (clear shells), Custom LED Wiring
Techniques
3D PrintingLED IntegrationHeat Fusion AssemblyVacuum Forming
Section C: Fabrication Process
01

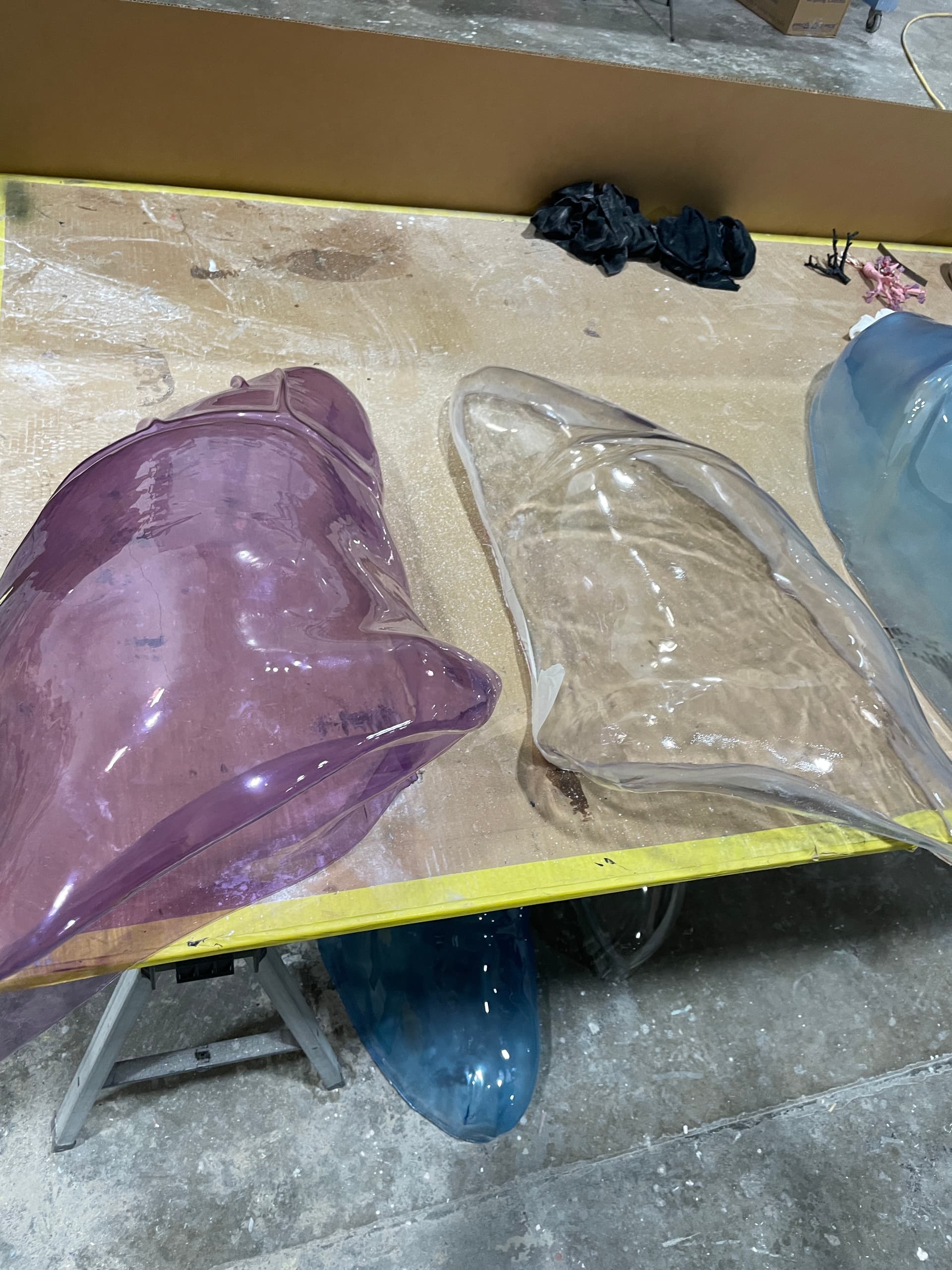

Vacuum formed PETG shells
02

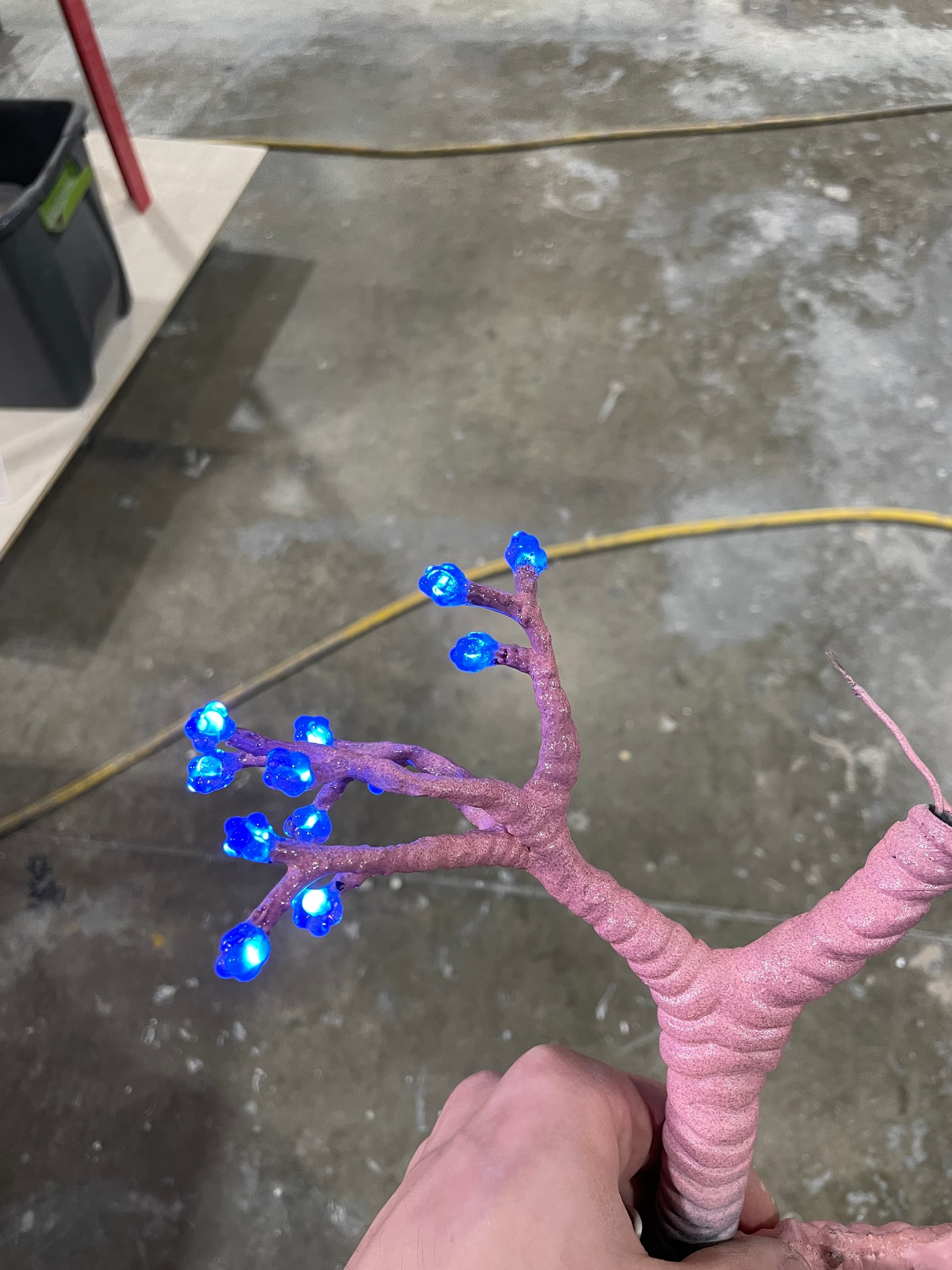

LEDs wired through every branch
03

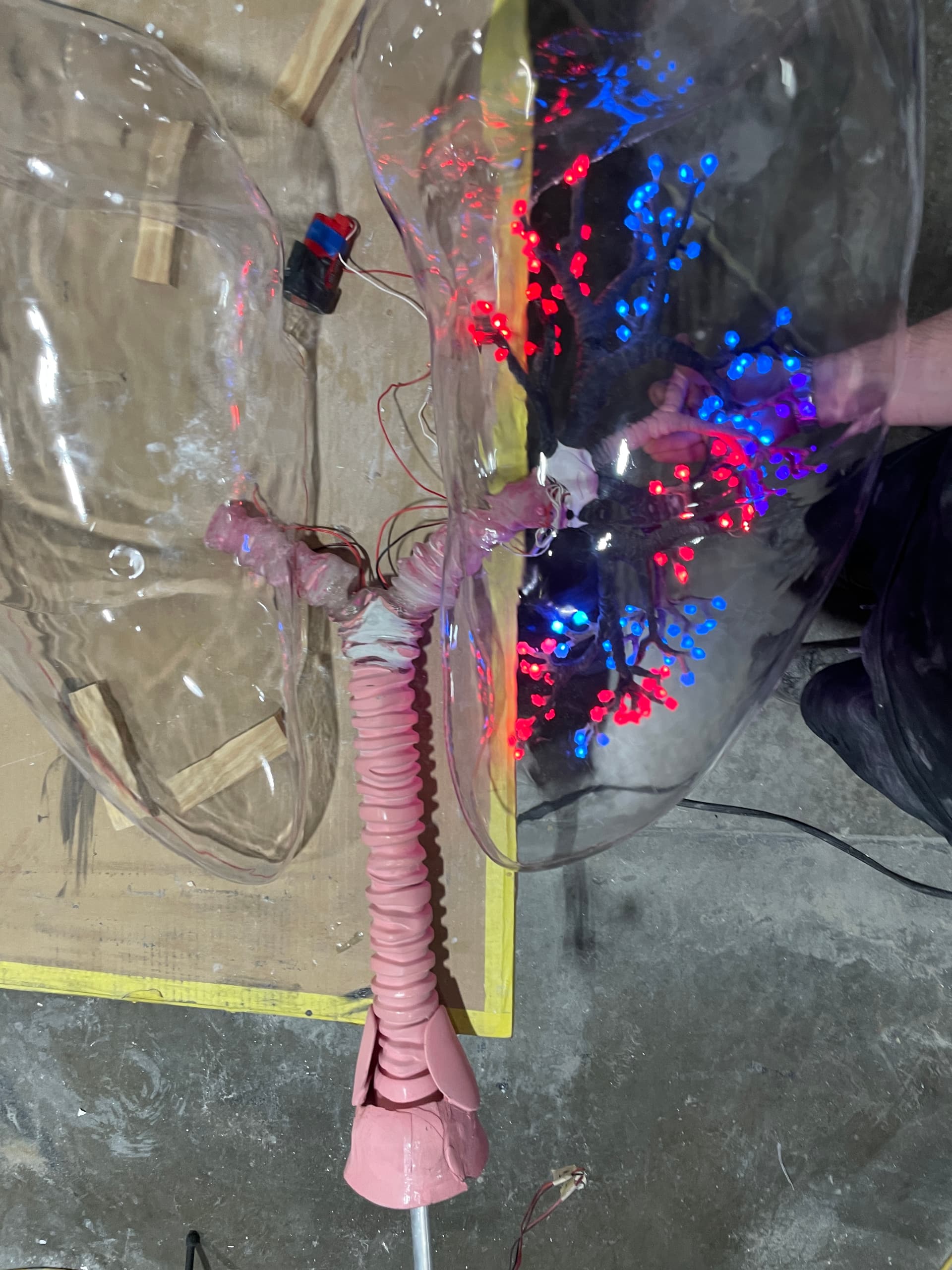

Assembly and wire management
04

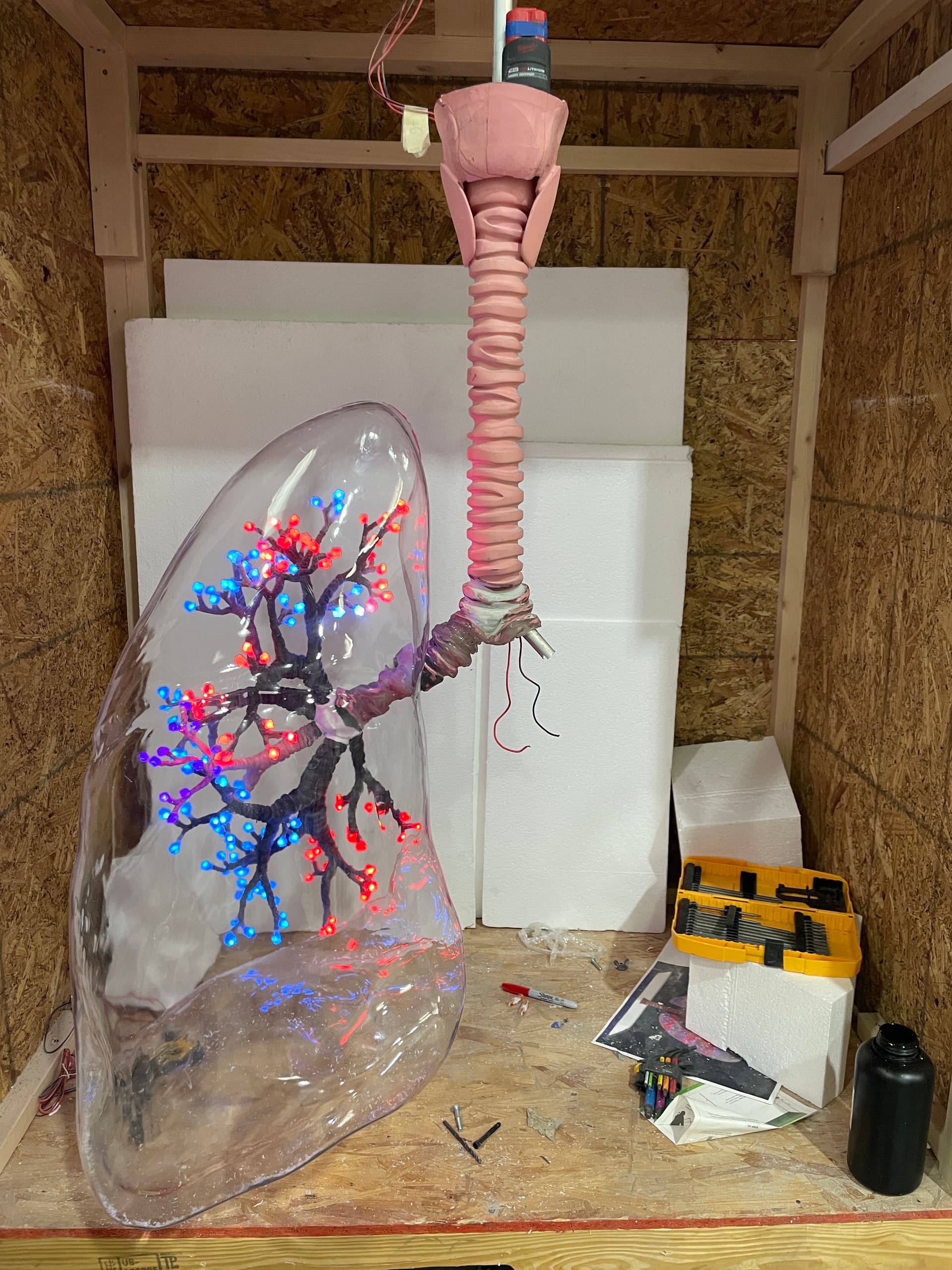

Final assembly before shipping
Section D: Final Result
